130TAD20 P5 2 direction Thrust Angular Contact Bearing 130x200x84

130TAD20 P5 Nachi Double-direction Thrust Load Angular Contact Ball Bearing, inner diameter is 130mm, outer diameter is 200mm and width is 84mm, bearing is ABEC-7 quality and made in Japan.

• 130TAD20 P5 Nachi Ball Bearing
• Nachi Thrust Load Angular Contact Ball Bearing
• Quality: ABEC-5
• Dimensions: 130mm x 200mm x 84mm/Metric
• ID (inner diameter)/Bore: 130mm
• OD (outer diameter): 200mm
• Width: 84mm
• Size: 130 x 200 x 84 mm
• Quantity: 1 Bearing
• Dynamic load rating Cr: 109,000 N
• Static load rating Cor: 325,000 N
• Limiting Speed:
  • Grease Lubrication: 2,100 RPM
  • Oil Lubrication: 2,800 RPM
• Made in Japan

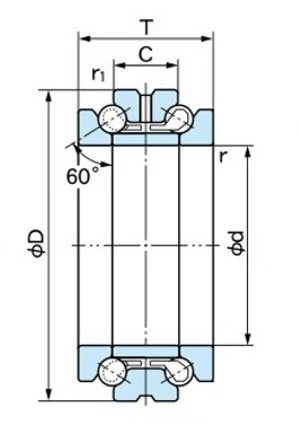

  Dimensions (mm)
  d	D	T	C	r(min)	r1(min)
  130	200	84	42	2	1
