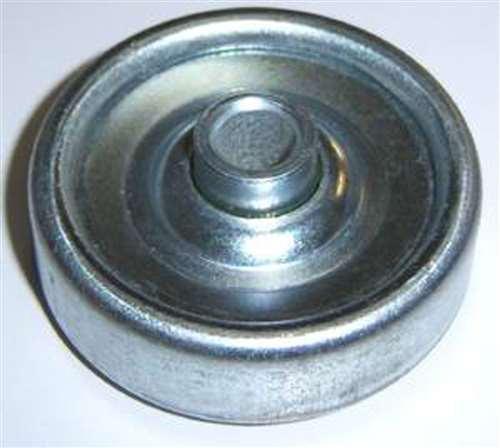

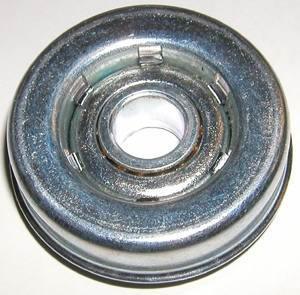

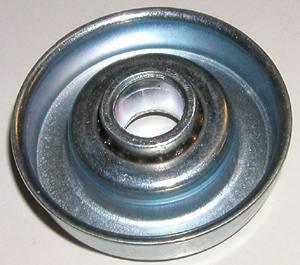

12mm x 47.6mm Stamped Conveyor Roller Bearing

12mm x 47.6mm Stamped Conveyor Roller Bearing

$6.99 USD
$9.99 USD $6.99 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

12mm Bore/ID x 47.6mm OD Conveyor Rollers


D1 D d H B Loading(lb)
50.7mm 47.6mm 12mm 18mm 13mm 580

Conveyor Rollers ball bearings for use with the conveyor rollers (pipes/cylinders), inner diameter bore=12mm, outer diameter=47.6mm, the mechanical drawing and the table above shows all the dimensions, the table shows also the load capacity, good luck building your conveyor system.
  • flanged ball bearings
  • Inner diameter: 12mm
  • Fitting diameter (outer surface): 47.6mm
  • Flange Diameter (outer edge): 50.7mm
