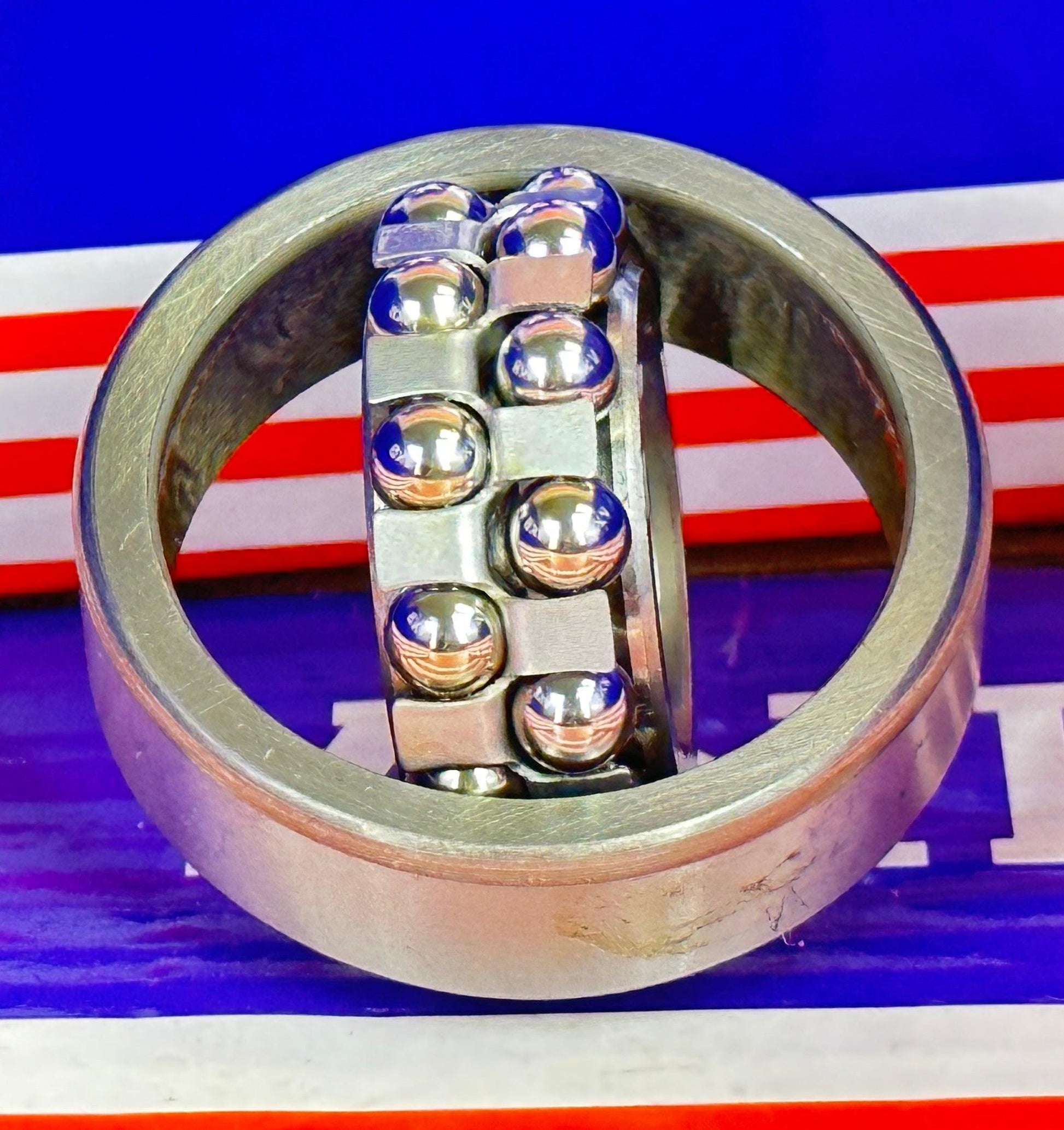

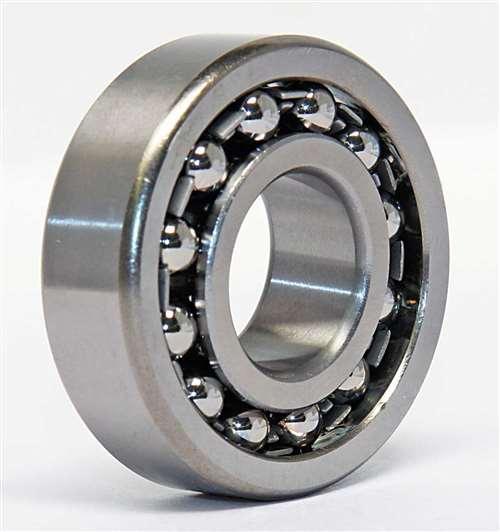

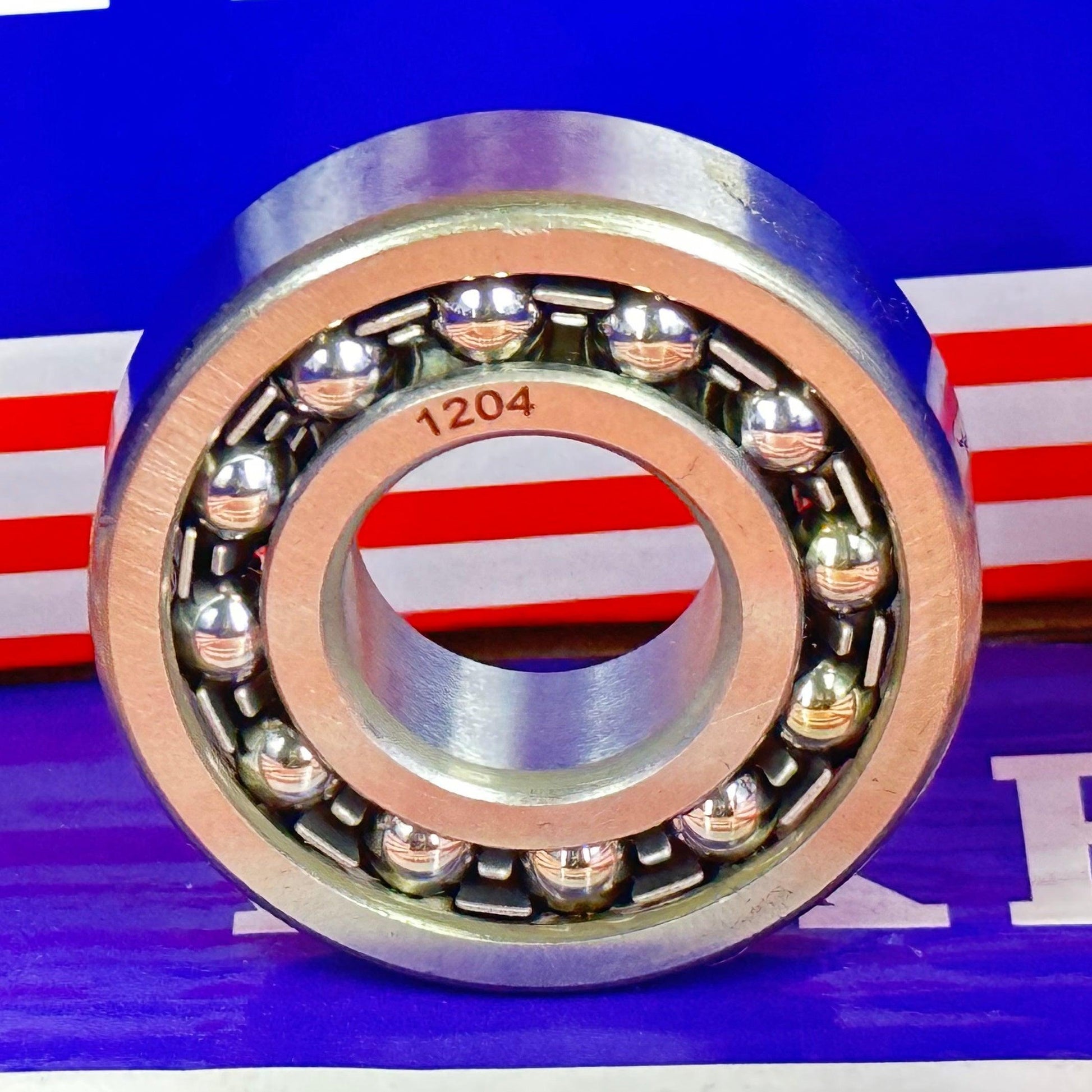

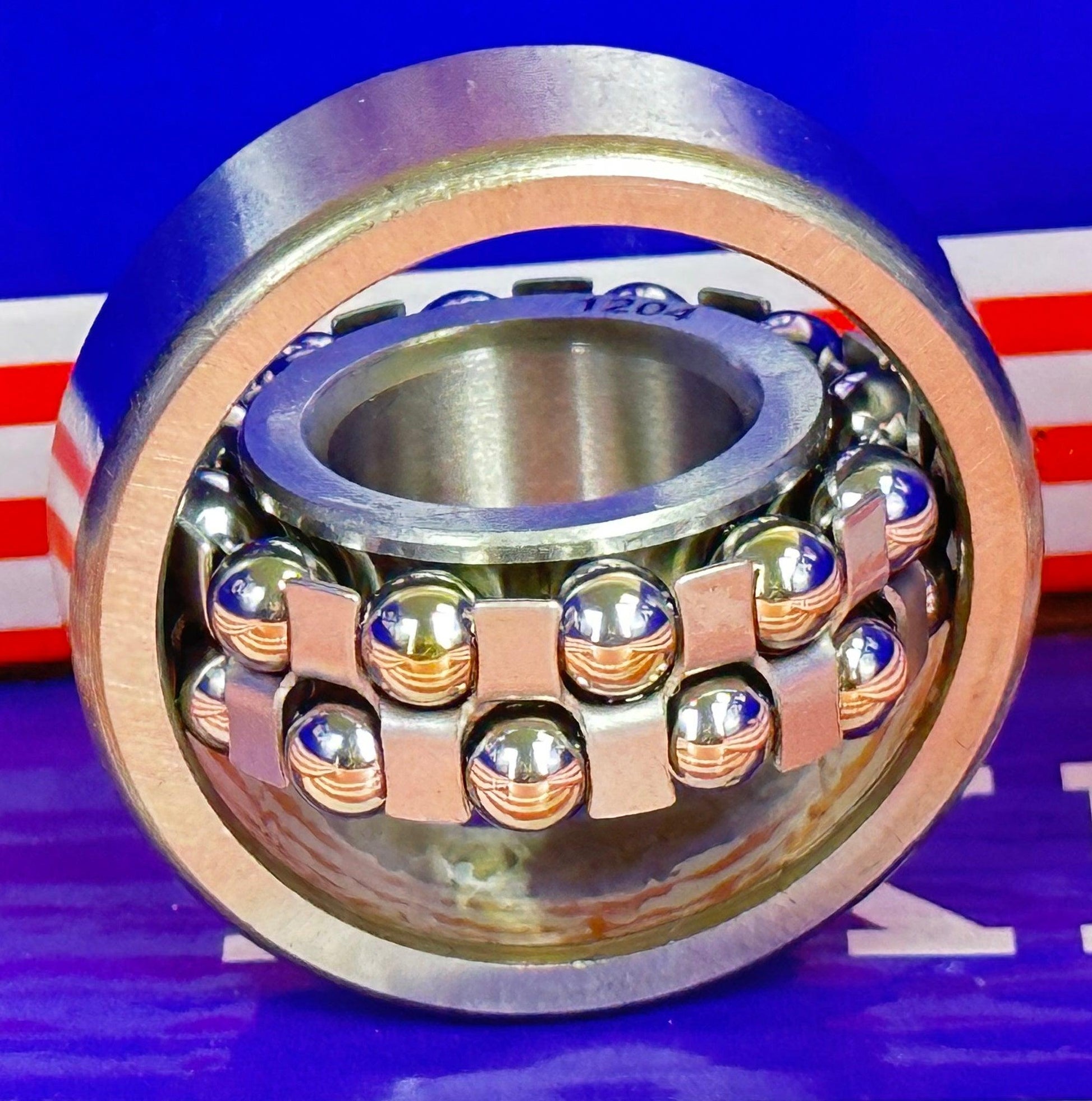

1204 Self Aligning Ball Bearing 20x47x14mm

1204 Self-Aligning Ball Bearing
✔️ 20mm x 47mm x 14mm – Automatically Adjusts to Misalignment

The 1204 is a double-row self-aligning ball bearing designed to handle both radial loads and shaft misalignment. Its spherical outer ring raceway lets the inner ring and ball assembly adjust naturally, making it ideal for applications where mounting accuracy or shaft flex can’t be guaranteed.

✅ Size: 20mm x 47mm x 14mm
✅ Type: Self-aligning ball bearing – double row
✅ Inner Diameter: 20mm
✅ Outer Diameter: 47mm
✅ Width: 14mm
✅ Dynamic Load Rating (C): 12,700 N
✅ Static Load Rating (Co): 3,400 N
✅ Max Speed (Grease): 15,000 RPM
✅ Max Speed (Oil): 18,000 RPM
✅ Quantity: 1 bearing

💡 Why are self-aligning bearings ideal for misaligned shafts?
Self-aligning ball bearings can compensate for shaft deflection or mounting misalignment without putting stress on the bearing, helping to reduce friction, heat, and premature failure in dynamic environments.

Get long-lasting performance even when alignment isn’t perfect - pick up the 1204 bearing and let it do the correcting for you!
