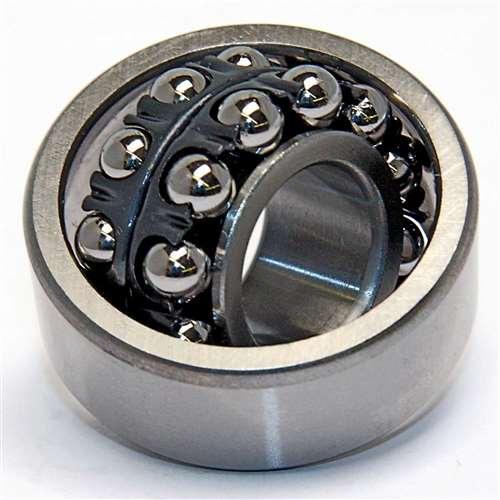

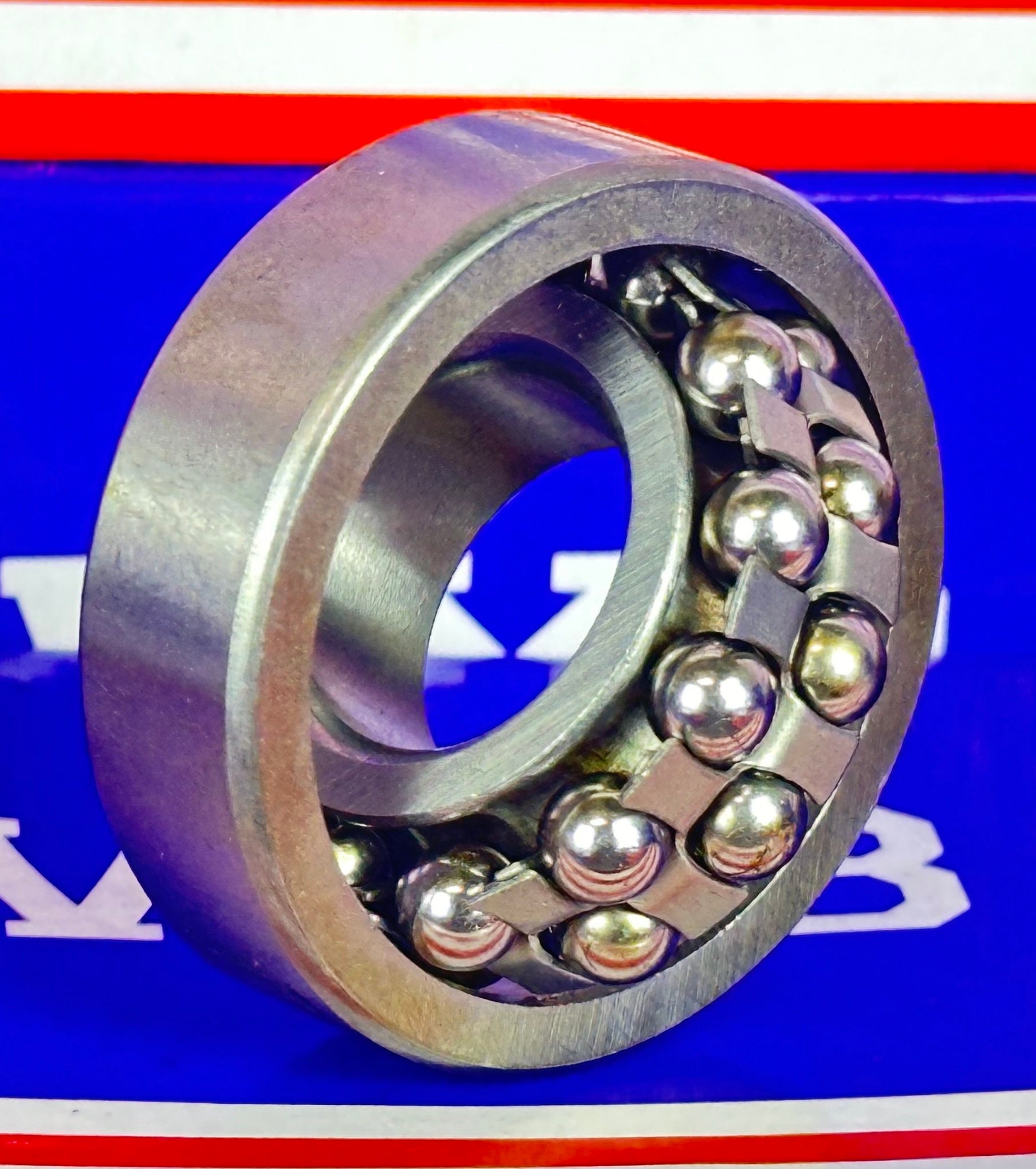

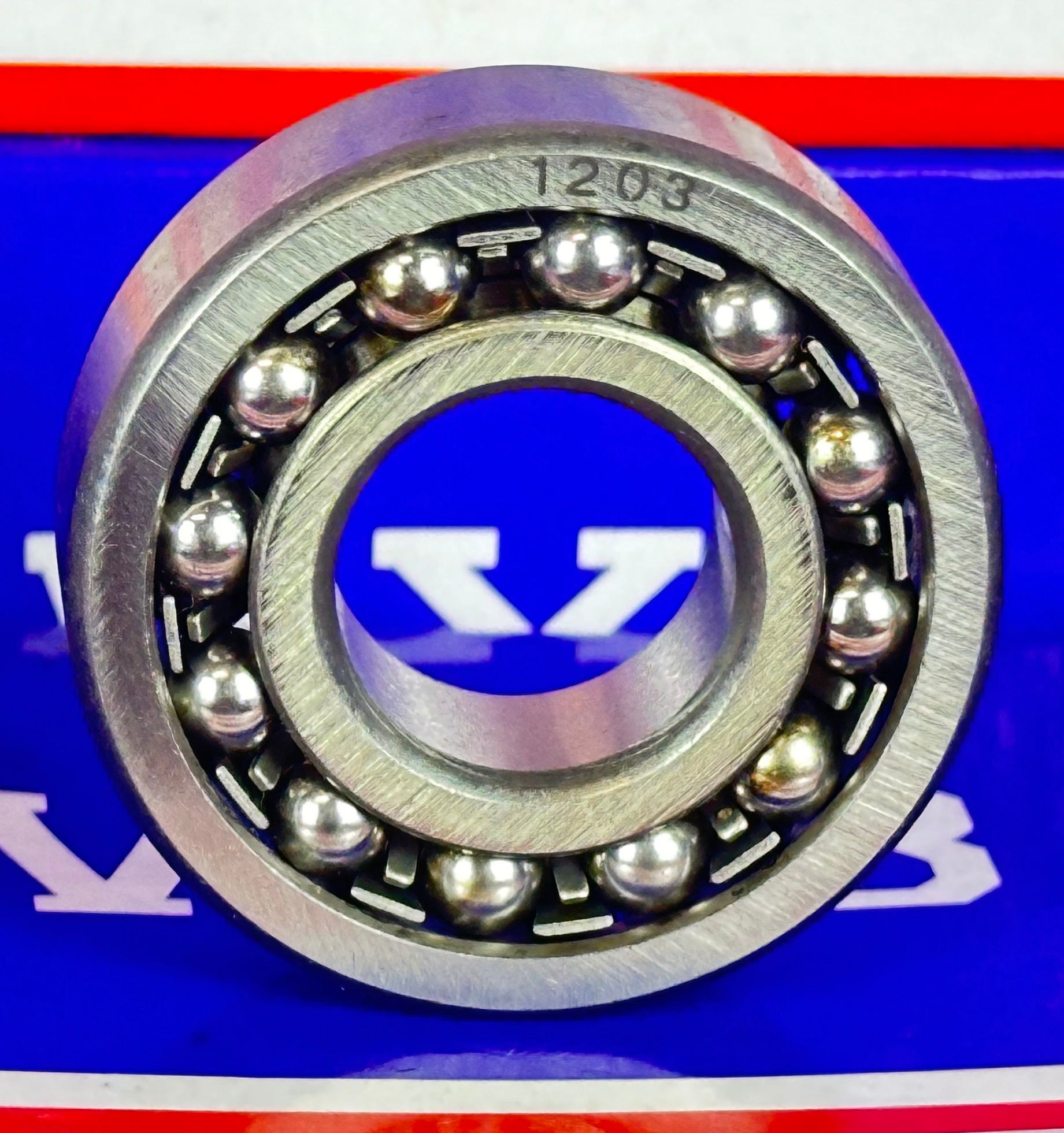

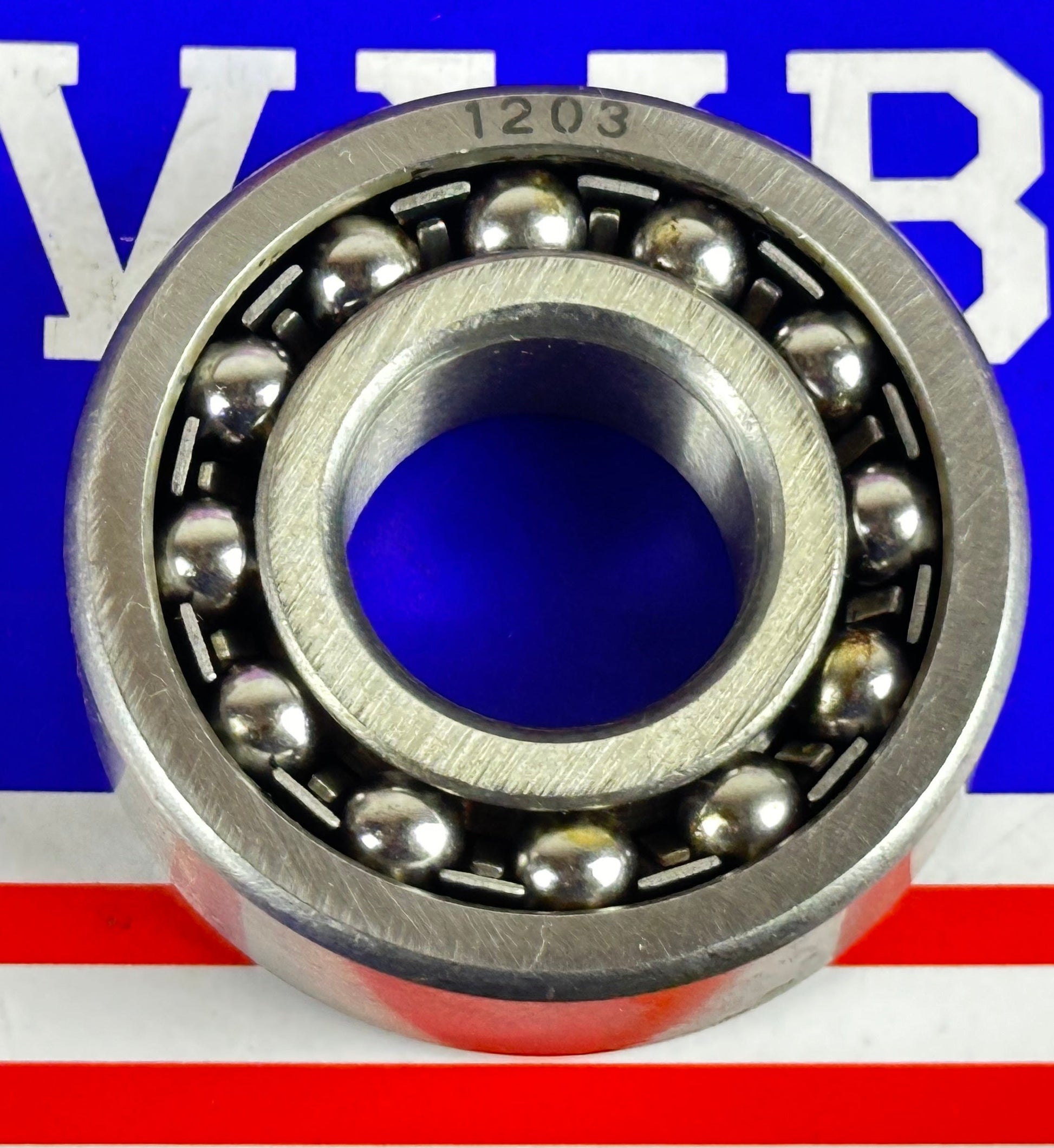

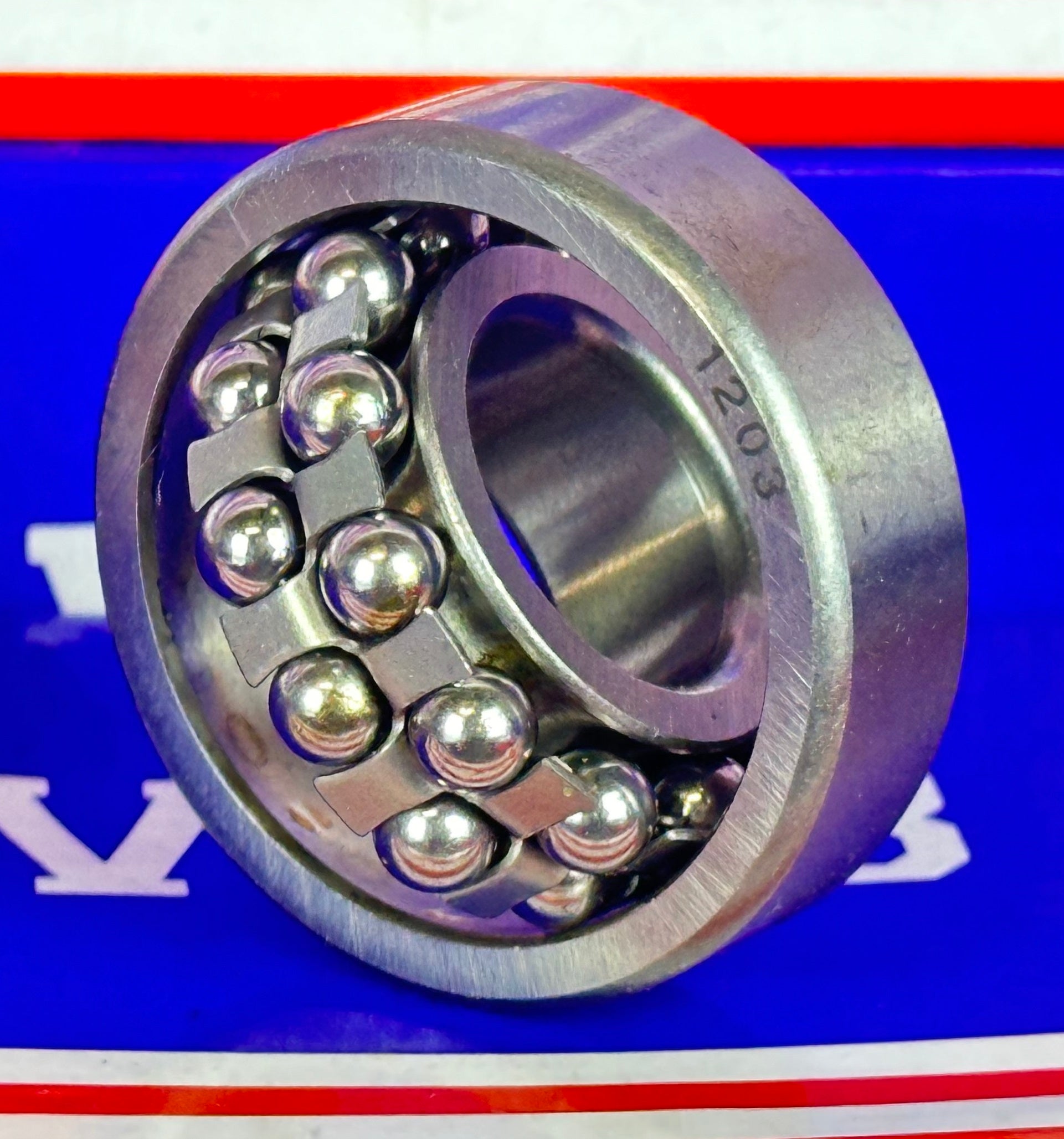

1203 Self Aligning Ball Bearing 17x40x12mm

1203 self-aligning ball bearing is designed with a spherical outer raceway that allows the inner ring, balls, and cage to adjust naturally to misalignment. Ideal for applications where shaft deflection or mounting inaccuracies occur, this bearing offers long-lasting performance and smooth operation under dynamic conditions.

• 1203 Ball Bearing
• Self Aligning Ball Bearing
• Size: 17mm x 40mm x 12mm
• Bearing Inner Diameter: 17mm
• Bearing Outer Diameter: 40mm
• Bearing Width: 12mm
• Size: 17 x 40 x 12 mm
• Quantity: 1 Bearing
• Dynamic load rating Cr: 8,840 N
• Static load rating Cor: 2,200 N
• Limiting Speed:
  • Grease Lubrication: 18,000 RPM
  • Oil Lubrication: 22,000 RPM
