1.9' Feet Actuator NEMA 23 CNC Ballscrew Linear Motion Slide Rail Table - a Motor

1.9' Feet Actuator NEMA 23 CNC Ballscrew Linear Motion Slide Rail Table - a Motor

$645.30 USD
$717.00 USD $645.30 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.


1.9' Feet CNC Ballscrew Linear Motion Slide Rail Table with a Motor
  • Overall Length (mm)= 600mm (1.9' feet)
  • Overall Height (mm)= 80mm
  • Effective Stroke L(mm)= 550-1000mm

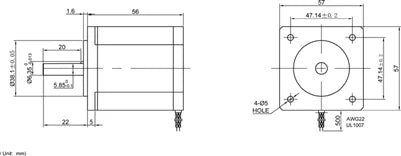

Motor parameters
Step angle Motor flange size(mm) Motor length(mm) Holding torque(N.m) Current (A) Resistance
( Ω)
Inductance

( mH) 		Rotor Inertia
(g.cm⊃2;) 		Lead Wire (No.)
1.8 57 56 0.93
2.0 3.0±20% 3.19 200 4

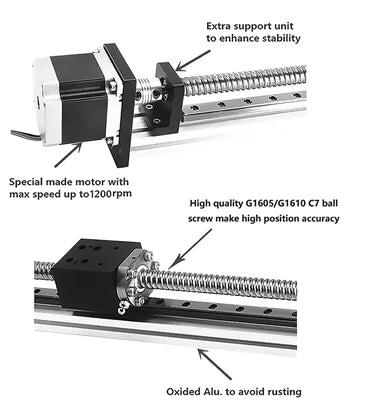

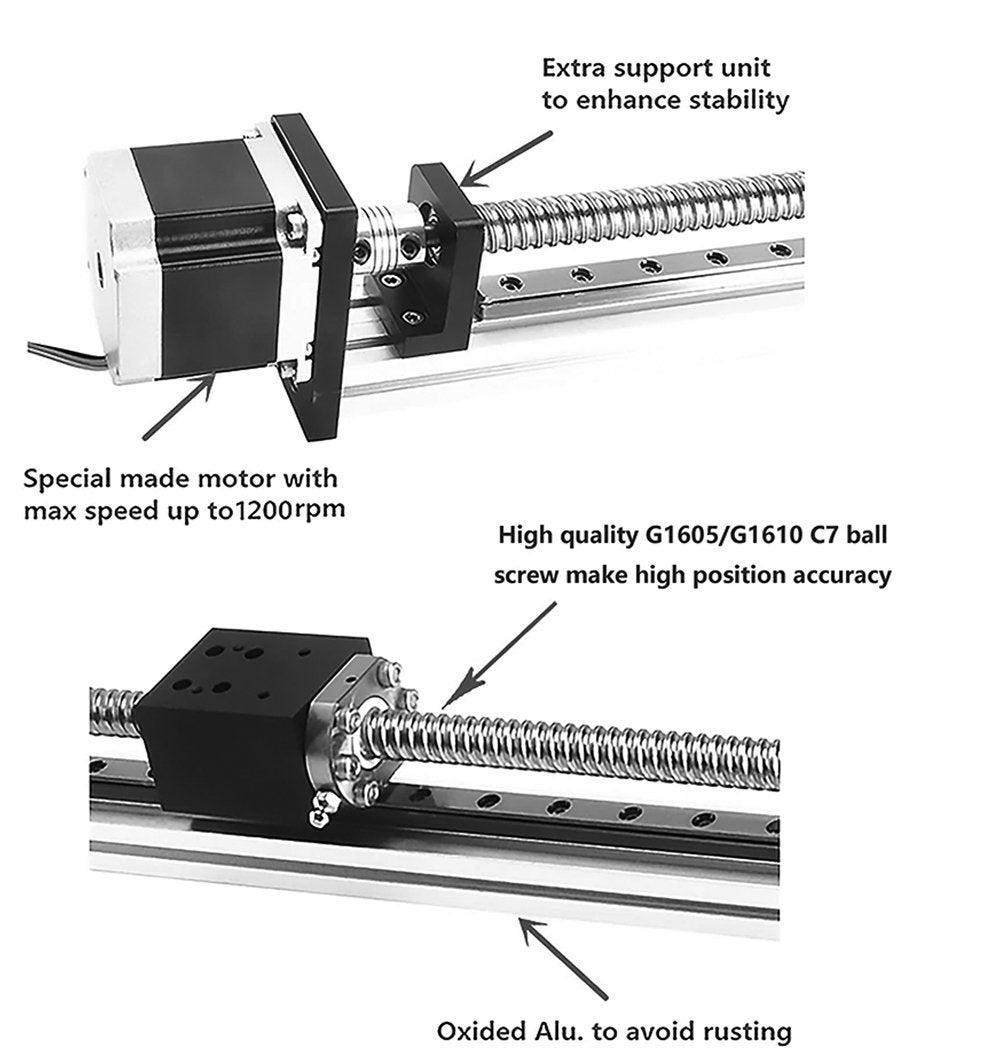

Ball screw parameters
Dia.(mm) Lead(mm) Accuracy Class
16 10 C7
