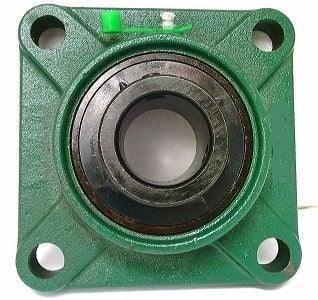

UCF201-8 Four Bolt Flange Unit
with black insert
1/2" inch Inner Diameter


UCF201-8 Four Bolt Flange Unit with Black Oxide plated Insert, bearing is Set Screw Type, Inner Diameter is 1/2" inch.
Black oxide has certain properties and characteristics that makes it ideal for certain applications. It is used to add corrosion resistance and for appearance.

  • UCF201-8 black insert Ball Bearing
  • Flange Mounted Bearing
  • Bolt Size: 3/8" inch
  • Shaft Diameter: 1/2" inch
  • Basic Load (Cr): 12.8 KN
  • Basic Load (Cor): 6.65 KN
  • Bearing No: UC201-8 Black
  • Housing No: F204
  • Quantity: 1 Bearing

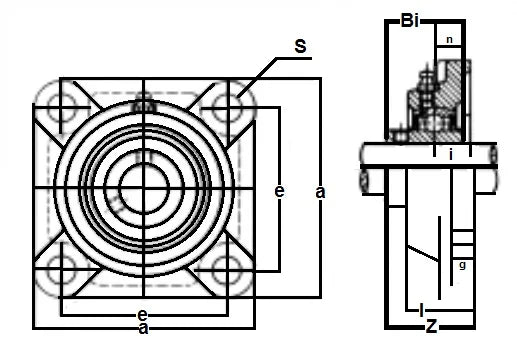

Dimensions (inches)
a e i g l s z Bi n
3-3/8" 2-33/64" 19/32" 15/32" 1" 15/32" 1-5/16" 1-7/32" 1/2"
