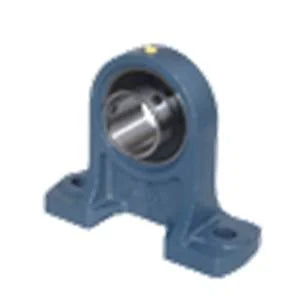

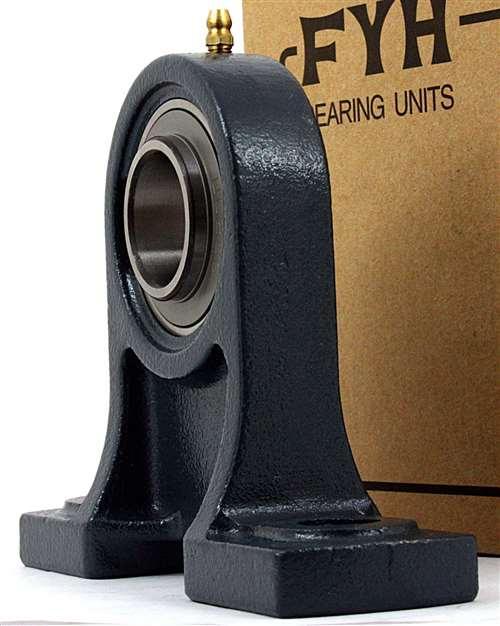

UCPH202-10 FYH Bearing
Pillow Block Bearing
Cylindrical bore (with set screws)
5/8" Inner Diameter Bearing

This unit is the high centerheight pillow type unit, It has a great resistance to impact loads. It is a suitable for machinery where greater base to center heights are required.Applications are Printing machinery and spinneret.

  • UCPH202-10 Bearing
  • high centerheight pillow unit
  • Bolt Size: 3/8"
  • Basic Load (Cr): 12.8 KN
  • Basic Load (Cor): 6.65 KN
  • Bearing No: UC202-10
  • Quantity: One bearing

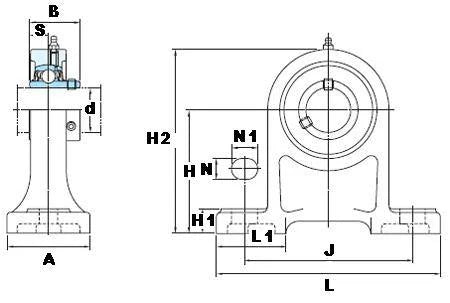

Dimensions (Inches)
d H L A J N N1 H1 H2 L1 B S
5/8" 2-3/4" 5" 1-9/16" 3-3/4" 1/2" 3/4" 19/32" 3-21/32" 1-13/16" 1.22" 5/8
